Desktop system may take up to 14 days to complete based on product availability unless stated otherwise.

System Specifications



1. Processor: AMD Ryzen 5 5600X

• Cores/Threads: 6 Cores, 12 Threads

• Base Clock Speed: 3.7 GHz

• Max Boost Clock Speed: Up to 4.6 GHz

• Cache: 32 MB L3 Cache

• TDP: 65W

• Architecture: Zen 3 (Vermeer)

• Socket: AM4

2. Graphics Card: Intel Arc B580 Limited Edition

• GPU Architecture: Battlemage

• Memory: 12GB GDDR6

• Memory Speed: 2670MHz

• Power Consumption: 190W

2a. ASUS Prime Radeon RX 9070 OC Edition 16GB

• GPU Series: AMD Radeon RX 9070 OC Edition

• Architecture: RDNA 3

• VRAM: 16GB GDDR6

• Cooling System: Likely triple-fan ASUS Prime design

• Factory Overclocked: Yes (OC Edition)

2b. ASUS Prime GeForce RTX 5070 12GB GDDR7

• GPU Architecture: NVIDIA Blackwell

• VRAM: 12GB GDDR7

• Interface: PCIe 5.0

• Display Outputs: HDMI 2.1 / DisplayPort 2.1

• Slot Size: 2.5-slot design

3. Motherboard: ASUS ROG Strix B550-F Gaming (Wi-Fi)

• Chipset: AMD B550

• CPU Socket: AM4

• RAM Slots: 4 x DDR4 DIMM slots (Max 128GB)

• PCIe Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1

• M.2 Storage: 1 x M.2 (PCIe 4.0 x4 & SATA), 1 x M.2 (PCIe 3.0 x4 & SATA)

• SATA Ports: 6 x SATA 6Gb/s

• Networking: Intel I225-V 2.5Gb Ethernet, Intel Wi-Fi 6 (802.11ax)

• Audio: SupremeFX S1220A CODEC

4. Storage: NV3 1TB NVMe SSD (Kingston NV3 1TB PCIe 4.0 NVMe SSD)

• Capacity: 1TB

• Interface: PCIe Gen 4.0 x4 NVMe

• Form Factor: M.2 2280

• Sequential Read Speed: Up to 6000 MB/s

• Sequential Write Speed: Up to 4000 MB/s

5. CPU Cooler: DeepCool AK400 WH

• Type: Single-Tower Air Cooler

• Heatpipes: 4 direct-touch copper heat pipes

• Fan: 120mm Fluid Dynamic Bearing PWM Fan

• TDP Rating: 220W

• Noise Level: ≤28 dB(A)

• Color: White

• Dimensions (L×W×H): 126×97×156 mm

6. RAM: Patriot Viper Steel DDR4 32GB (2 x 16GB) 3200MHz Kit - PVS432G320C6K

• Capacity: 32GB (2 x 16GB)

• Type: DDR4

• Speed: 3200 MHz (PC4-25600)

• CAS Latency (CL): CL16

• Timing: 16-20-20-40

• Voltage: 1.35V

• Form Factor: 288-Pin UDIMM

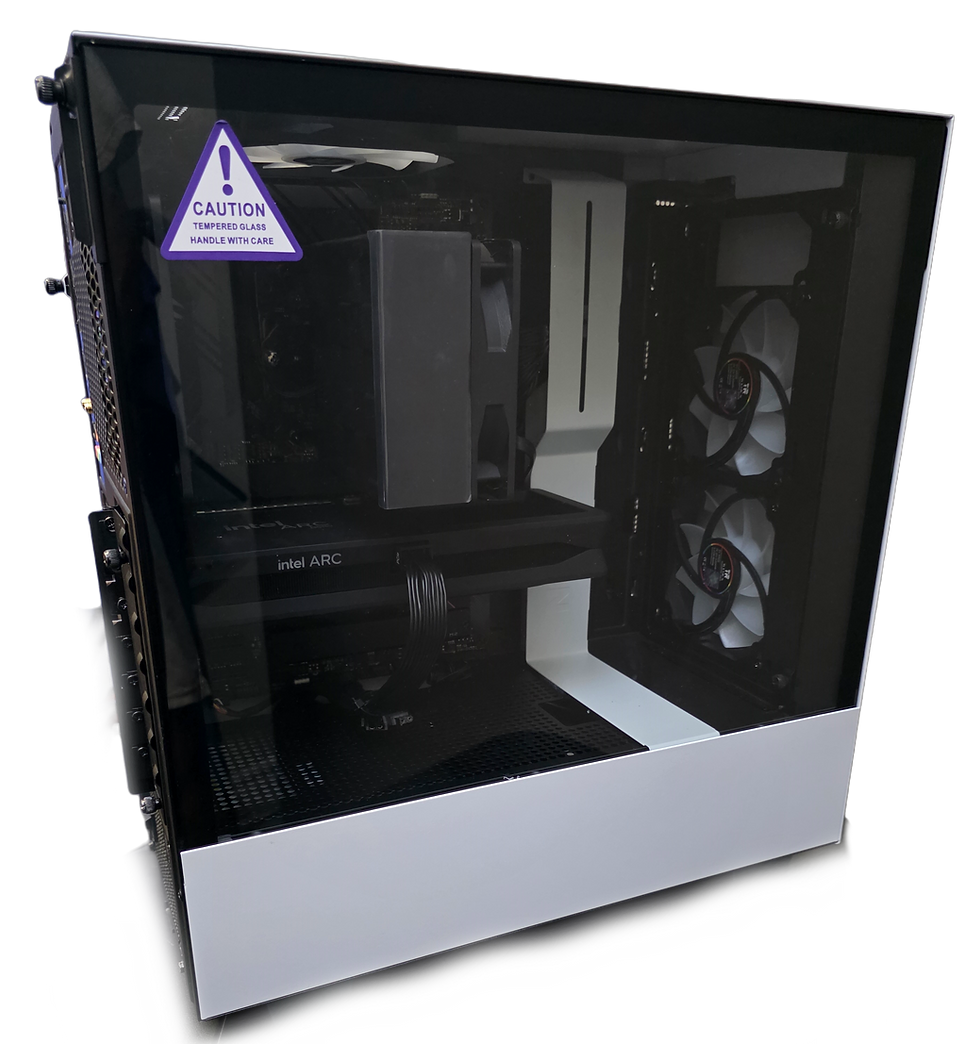

7. Case: NZXT H500 (White and Black)

• Type: ATX Mid Tower

• Dimensions (with feet): W: 210mm x H: 460mm x D: 428mm

• Material(s): SECC Steel and Tempered Glass

• Motherboard Support: Mini-ITX, MicroATX, ATX

• I/O Ports (Top): 2 x USB 3.1 Gen 1 Type-A, 1 x Audio/Mic combo jack

• Drive Bays: 2.5”: 3+1, 3.5”: 1+1

• Expansion Slots: 7

• Fan Support: Front: 2x120/140mm; Top: 1x120/140mm; Rear: 1x120mm

• Max CPU Cooler Height: 165mm

• Max GPU Length: 381mm

8. Power Supply: CORSAIR RM850x Fully Modular ATX Power Supply - 80 PLUS Gold - Low-Noise Fan - Zero RPM - Black

• Wattage: 850W

• Efficiency Rating: 80 PLUS Gold Certified

• Modularity: Fully Modular

• Form Factor: ATX

• Fan: 135mm Fluid Dynamic Bearing Fan with Zero RPM Fan Mode

• Capacitors: 100% Japanese 105°C rated

• Warranty: 10-year



• Exceptional Gaming Performance (1440p & 4K): The RTX 5060 Ti, with its Blackwell architecture, 4th Gen RT Cores, 5th Gen Tensor Cores, and DLSS 4 with Multi Frame Generation, is designed to deliver outstanding frame rates in modern games at high refresh rate 1440p and provide a strong experience at 4K, especially with DLSS enabled. It offers significant improvements in ray tracing performance.

• High-End Productivity and Content Creation: The combination of the 6-core/12-thread Ryzen 5 5600X, 32GB of 3200MHz RAM, and the powerful RTX 5060 Ti with its advanced AI and CUDA capabilities makes this system a strong performer for demanding tasks such as 3D rendering, complex video editing, AI applications (like Stable Diffusion), and professional live streaming. The ample RAM ensures smooth handling of large projects.

• Blazing Fast Loading and Responsiveness: The 1TB PCIe 4.0 NVMe SSD provides extremely quick boot times, rapid game loading, and snappy application performance, ensuring a very responsive user experience.

• Robust Multi-tasking: The Ryzen 5 5600X, with its 6 cores and 12 threads, combined with 32GB of fast DDR4 RAM, offers excellent multi-tasking capabilities, allowing you to run numerous applications simultaneously without significant slowdowns.

• Stable and Efficient Power Delivery: The CORSAIR RM850x 80 PLUS Gold certified power supply provides 850W of highly efficient and stable power, ensuring all components receive clean power, even under heavy load. Its fully modular design facilitates clean cable management.

• Quiet Operation: The CORSAIR RM850x features a Zero RPM fan mode, meaning its fan won't spin up under low and medium loads, contributing to a very quiet system during everyday use. The DeepCool AK400 CPU cooler also operates quietly while effectively cooling the CPU.

• Effective Cooling: The DeepCool AK400 is well-suited to handle the Ryzen 5 5600X's heat output, even under load. The NZXT H500 case, despite its solid front panel, employs a "negative pressure" airflow design that can effectively cool components, particularly the GPU, by drawing air from various vents.

• Excellent Future-Proofing (GPU & PSU): The RTX 5060 Ti is a brand-new, cutting-edge GPU, ensuring relevance for future gaming and professional applications. The 850W CORSAIR RM850x PSU provides ample headroom for potential future component upgrades.

• Clean and Modern Aesthetics: The NZXT H500 case in white and black offers a minimalist and attractive design, complemented by the fully modular PSU, which aids in creating a very clean internal build.
